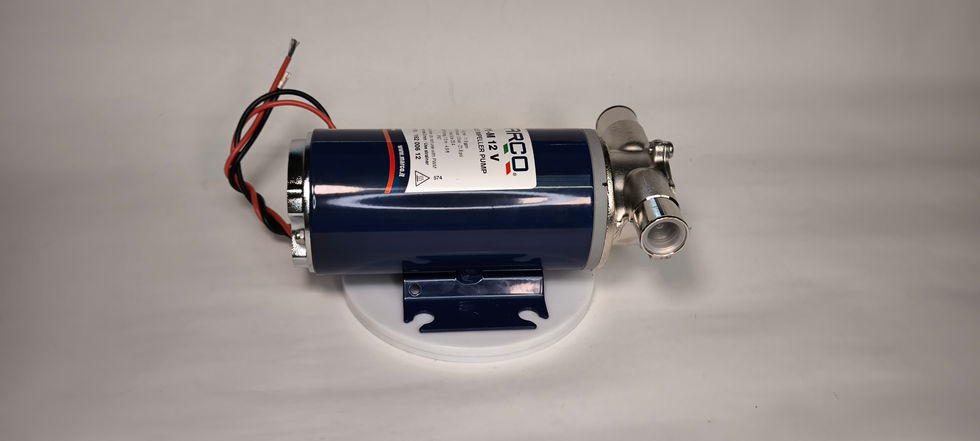

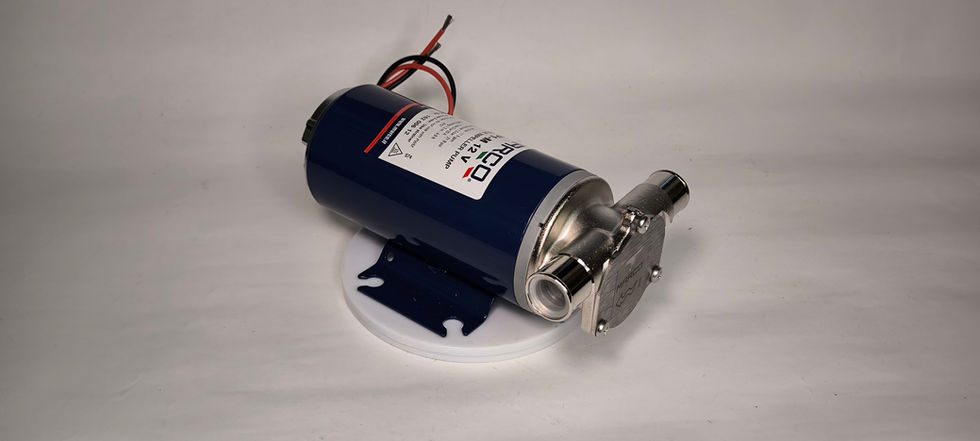

UP1-M 12V/24V/48V Rubber Impeller Pump 45 L/min
€216.00
Flow Rate: 45l/min (11.9 gpm)
Pressure: 1.5 bar (21.8 psi)
Self-priming electric pump with self lubricating rubber impeller. Now available in 3 different flow rates: 25, 35 and 45 litres/minute. Fitted with waterproof cable guide and internal brush holder with EMI filter. ISO 8846 and ISO 8849. Ideal for bilge and waste water on any type of boat.
Type
Description
Self-priming, small electric pumps with nitrile rubber impeller, housing made of nickel-plated brass, spindle made of stainless steel.
Ideal for bilge and gray water emptying for any type of boat. The pump can be used in many areas e.g. ship & boat, caravan & mobile home, construction machinery, agriculture, industry etc.
Internal brush holder with EMI filter, waterproof cover and cable passage. ISO 8849 and ISO 8846.
Professional commitment and continuous growth are the basis of the experience on which MARCO S.P.A. based. almost 30 years. It was founded in 1970 by Giovanni Marco Franceschini and is today the global quality leader in the field of small electric pumps at the highest level. Legendary reliability makes Marco products in demand where there is no risk due to price compromises: sea, science, production, road transport.
* Made in Italy * - no cheap import from the Far East.
Technical details
| Part n. | 16200612 | 16200613 | 16200616 |
| Product Name | UP1-M | UP1-M | UP1-M |
| Voltage (V) | 12 | 24 | 48 |
| Consumption (A) | 14 | 7 | 3,5 |
| Fuse (A) | 20 | 15 | 10 |
| Self-priming (m) | 1,5 | 1,5 | 1,5 |
| Flow rate (l/min) | 45 | 45 | 45 |
| Pressure (bar) | 1,5 | 1,5 | 1,5 |
| Ports (BSP) | 1/2" | 1/2" | 1/2" |
| Hose (ID) (mm) | 25 | 25 | 25 |
| IP Protection | 67 | 67 | 67 |
| Motor power (W) | 168 | 168 | 168 |
Codes
| Manufacturer's Code | Product Name | EAN |
| 162 006 12 | UP1-M 12V | 802227860862 |
| 162 006 13 | UP1-M 24V | 802227860863 |
| 163 006 13 | UP1-M 48V |
Dimensions
| Product Name | Height | Length | Width | Weight |
| UP1-M | 210 mm | 120 mm | 98 mm | 4.1 kg |
Download
Spare Parts
R6400099
R6400077
R6400005
R6400094
R6400015
